Mounting Folders to a Compute Session

When you start a compute session, the user has access to the /home/work/ directory, and the normal directories and files created under /home/work/ will disappear when the compute session is terminated. This is because compute sessions are dynamically created and deleted based on the container. To preserve the data inside the container independent of the life cycle of the container, a separate host folder must be mounted into the container, and then files must be created within the mounted folder. Backend.AI provides a function to mount storage folders when creating a compute session.

Let’s go to the Sessions page and click the START button to create a new compute session. In the Folders to mount panel in the session creation dialog, you can see a list of storage folders that can be mount. By clicking the folder you want to mount, you can mount it. You can also mount multiple folders simultaneously by clicking multiple items. In this example, we will mount two folders, user1-ml-test and user2-vfolder, and then create a compute session.

Launch a compute session with storage folders

Note

Folders to mount only lists the data folders that the user can currently mount. For example, project folders used by other projects are not exposed in Folders to mount. The storage host for each folder is also displayed under the folder’s name.

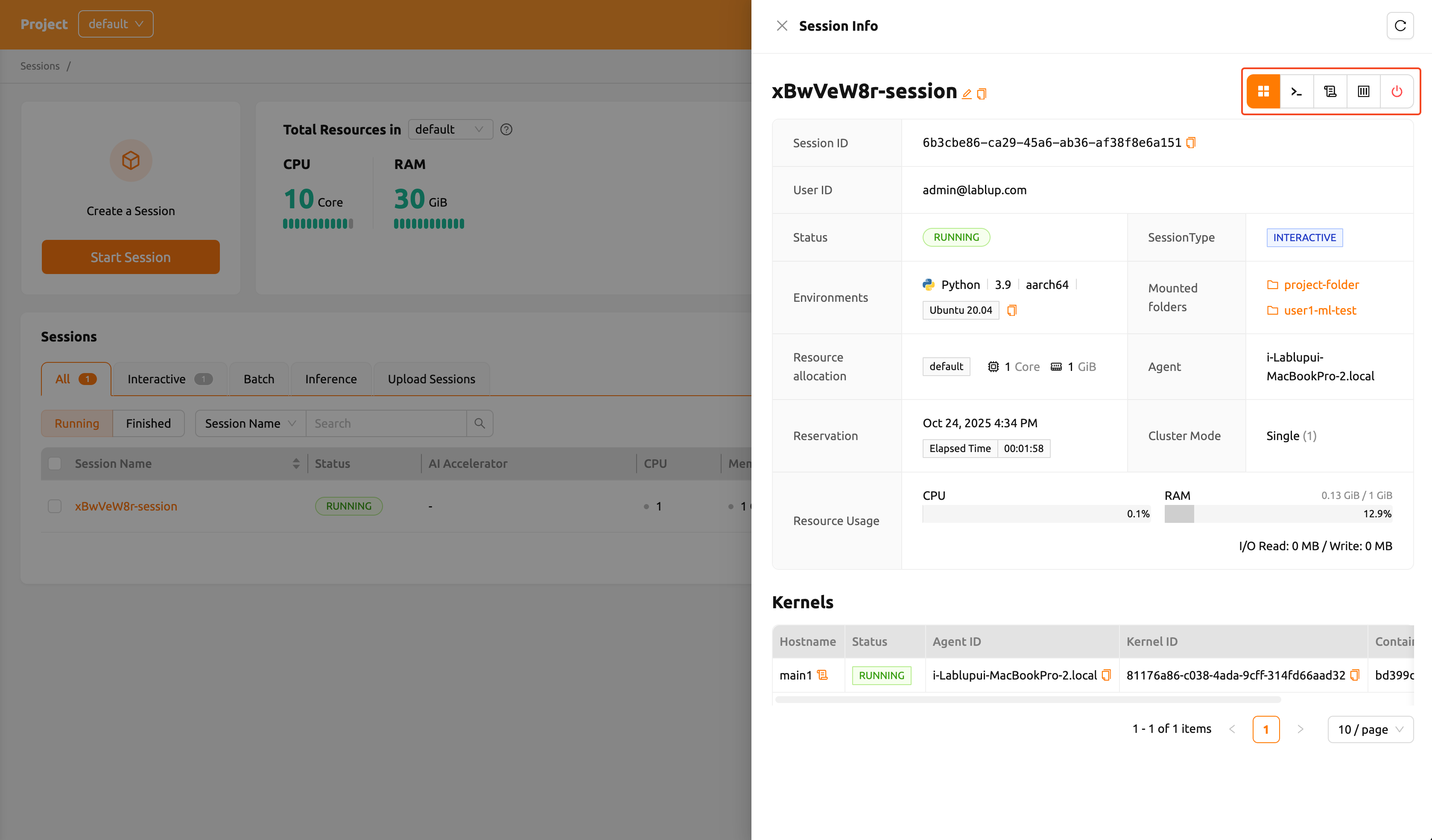

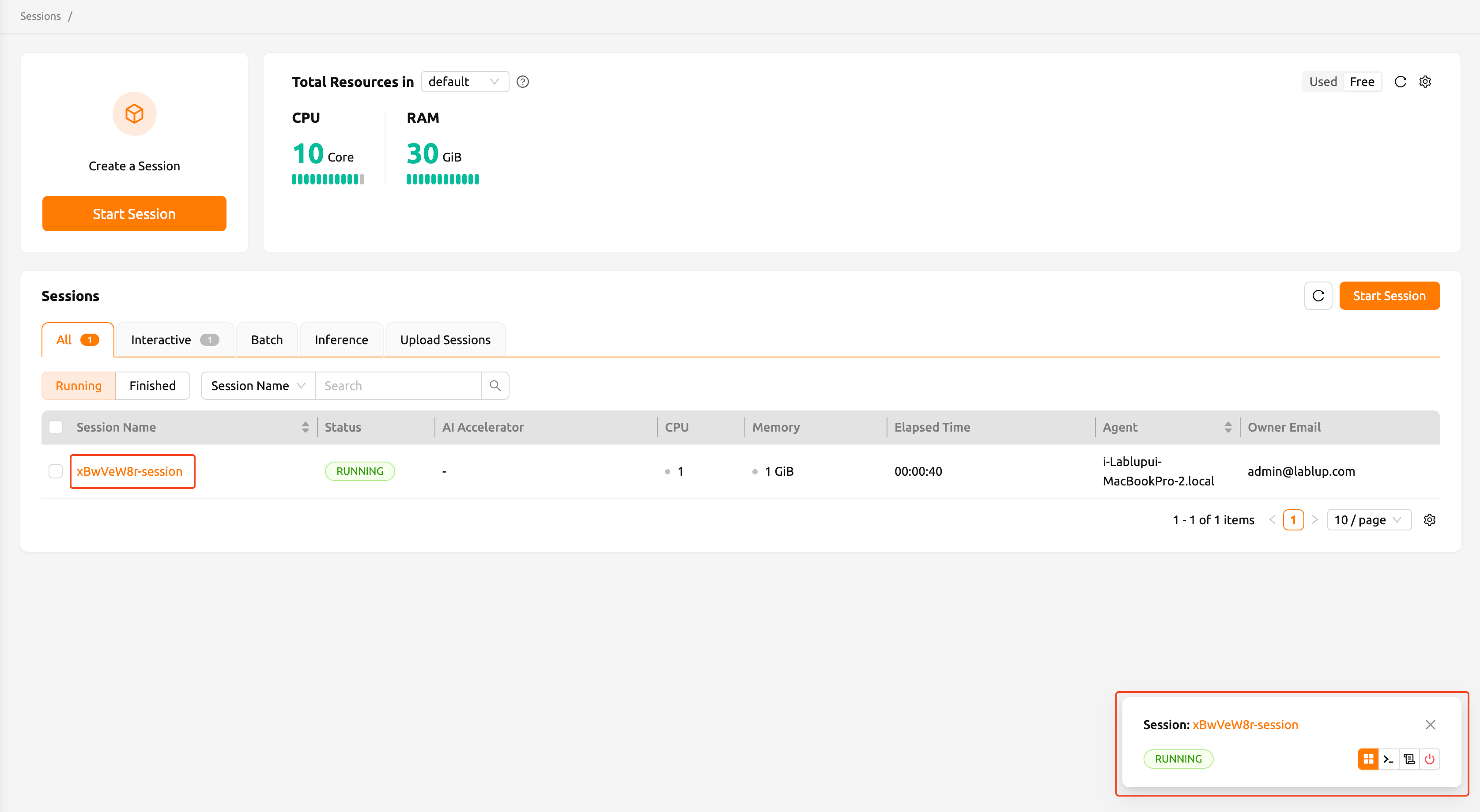

Now, open the terminal by clicking the terminal icon in the created session. If you run ls command in the terminal, you can see that the user1-ml-test and user2-vfolder folders are mounted under the home directory.

Note

The selected folder, by default, will be mounted with its name under /home/work/ inside the compute session. For example, if a folder’s name is test, it is mounted on /home/work/test. In case you want to customize the mount path, write the absolute path in the Path & Alias input field. If you write /workspace in the input field for the test folder, it will be mounted on /workspace inside the session. Writing a relative path will mount the folder under /home/work/ with the path.

Let’s create a test_file under user2-vfolder to see if the file can be preserved after the compute session is terminated. The contents of this file will be “file inside user2-vfolder”.

Mounted folders in terminal

If you run ls command against user2-vfolder, you can see that the file was created successfully. Also note the contents of the file with the cat command.

Now delete the compute session and go to the Storage page. Locate the user2-vfolder folder, open a file explorer and check that the file test_file exists. Click the file download button in Actions to download the file to the local machine and open it to confirm that the contents of the file are “file inside user2-vfolder”.

Download icon in the folder explorer

Like this, when creating a compute session, you can mount storage folders and perform any file operations on those mounted folders to save data even after the compute session termination.

Configure a compute session environment using an automount folder

Sometimes you need a new program or library that is not pre-installed in a compute session. In that case, you can install packages and configure a certain environment regardless of the type of compute session by using the Storage folder, which persists independent of session lifecycle, and the automount folder.

Install Python packages via pip

Creating a folder named .local allows a user to install Python user packages in that folder. This is because pip by default installs the packages in the .local folder under the user’s home folder (note that automount folder is mounted under user’s home folder). So, if you want to install and keep the Python package tqdm regardless of the type of computing environment, you can issue the following command in your terminal:

pip install tqdm

After that, when a new compute session is created, the .local folder where the tqdm package is installed is automatically mounted, so you can use the tqdm package without reinstalling.

Warning

If you spawn multiple sessions that use different Python versions, there may be compatibility issues with the packages. This can be circumvented by branching PYTHONPATH environment variable via the .bashrc. This is because the user’s pip package is installed in the path specified in the PYTHONPATH.

Install packages via Homebrew

Package managers like Ubuntu apt or CentOS yum usually require the root permission. For security reasons, sudo and root accesses are blocked by default in Backend.AI’s compute session (it may be allowed depending on the configuration), so we recommend to use Homebrew on Linux which does not require sudo.

Homebrew can be configured as follows:

  • Create .linuxbrew folder in Data & Storage page.

  • Create a compute session (.linuxbrew folder is automatically mounted at /home/linuxbrew/.linuxbrew).

  • Install Homebrew in the compute session, if not yet installed.

    $ /bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/HEAD/install.sh)"

  • Homebrew packages can be installed like:

    $ brew install hello
    $ hello
    Hello, world!


brew installs packages under /home/linuxbrew/.linuxbrew which is automatically mounted when .linuxbrew folder exists. So, if you create a automount folder named .linuxbrew, Homebrew packages can be kept after the compute session is destroyed and then reused for the next compute session.
