Data Page

Handling Data & Storage Folders

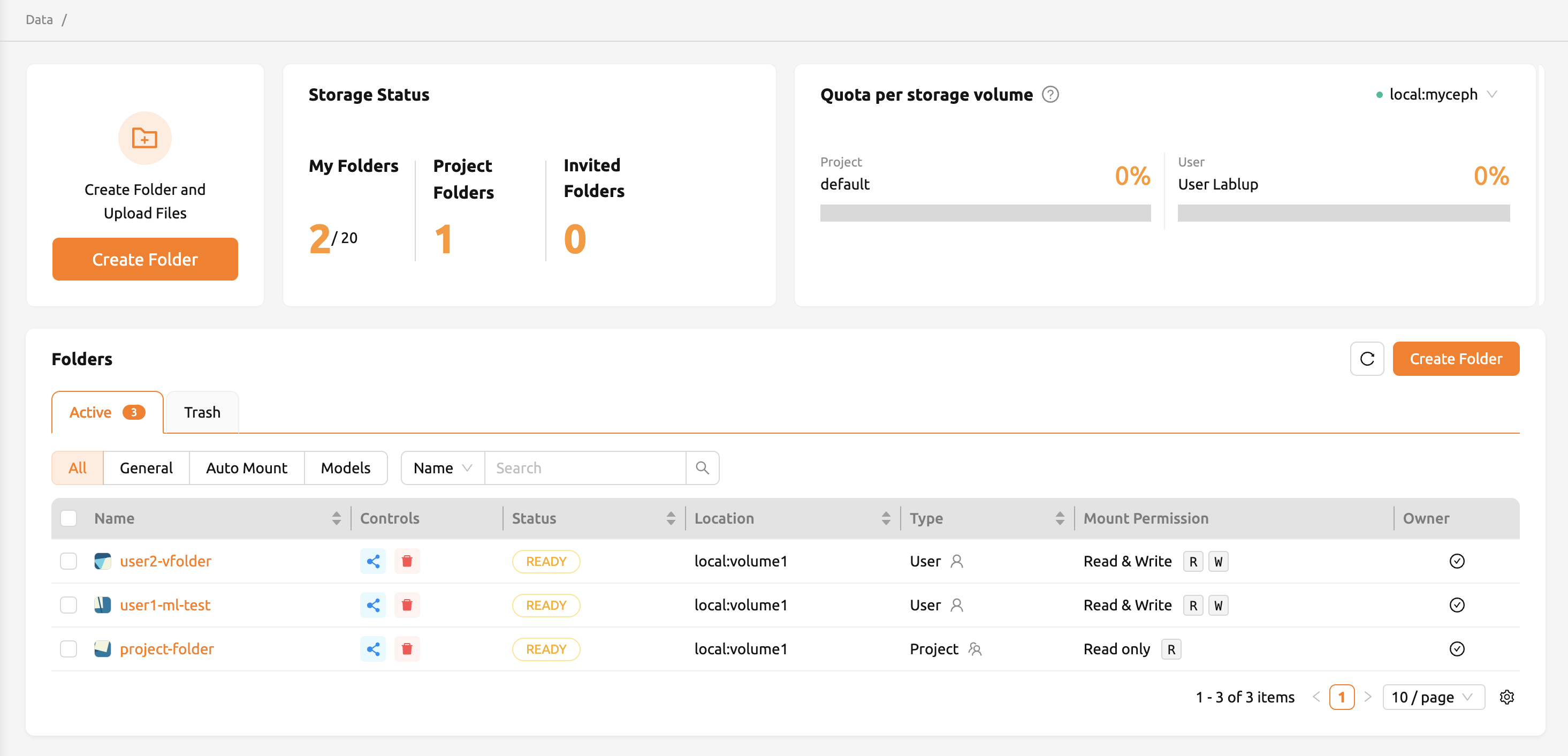

Backend.AI supports dedicated storage to preserve user's files. Since the files and directories of a compute session are deleted upon session termination, it is recommended to save them in a storage folder. List of storage folders can be found by selecting the Data page on the sidebar. You can see the information such as the folder name and ID, the NFS host name where the folder is located (Location), and folder access rights (Permission).

There are two types of storage folders: User and Project. You can distinguish between them in the 'Type' column.

A User folder is created directly by an individual user for personal use. A Project folder is created by a domain administrator for each project. Regular users cannot create project folders themselves; they can only use project folders that have been created by an administrator.

The Storage Status and Quota per storage volume show the following information:

Storage Status
- Created Folders: The number of folders that the user created.
  Limit: The maximum number of folders that the user can create afterwards. This value depends on the resource policy applied to the user and cannot be changed without changing the resource policy. Folders that were not created by the user (eg. folders invited to share, or project folders) are not counted.
- Project Folders: The number of project folders that the user created.
- Invited Folders: The number of folders that the user was invited to share.
Quota per storage volume
- Host: The name of the storage host.
- Project: Current project folder usage / current project folder quota scope.
- User: Current user folder usage / current user folder quota scope.

Note

Please remind that quota is only available in storage that provides quota setting (e.g. XFS, CephFS, NetApp, Purestorage, etc.). For the quota setting, please refer to the Quota Setting Panel section.

Create storage folder

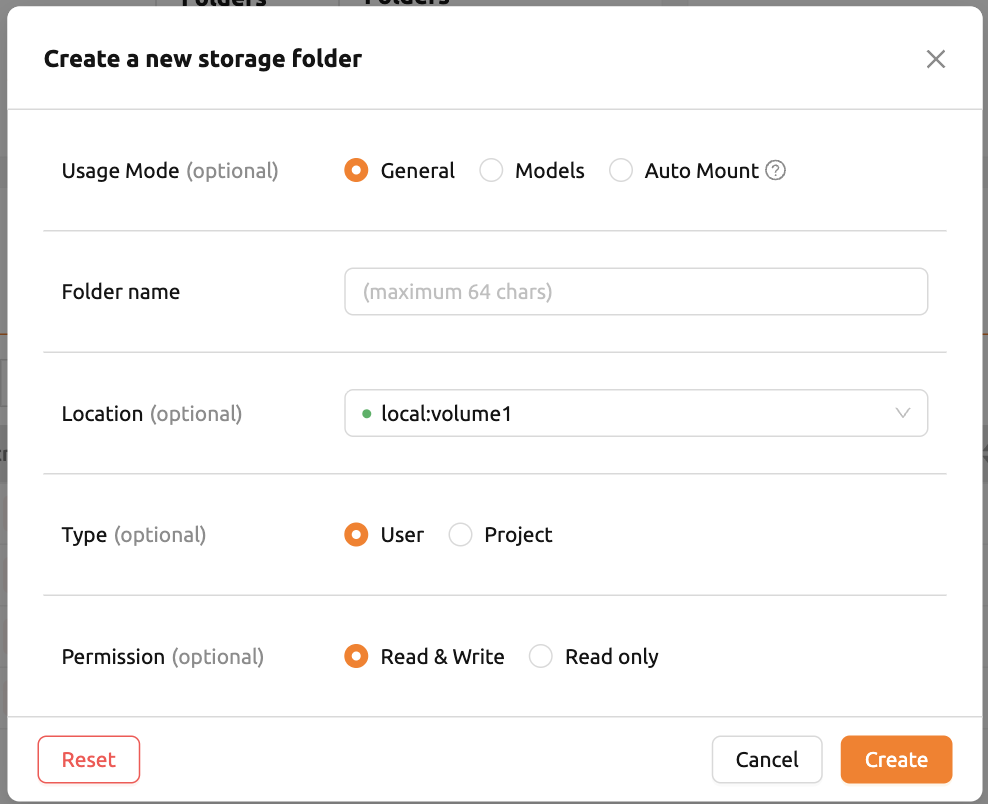

To create a new folder, click 'Create Folder' on the Data page. Fill in the fields in the creation dialog as follows:

The meaning of each field in the creation dialog is as follows.

Usage Mode: Set the purpose of the folder.
- General: Defines a folder for storing various data in a general-purpose manner.
- Models: Defines a folder specialized for model serving and management. If this mode is selected, it is also possible to toggle the folder's copy availability.
- Auto Mount: Folders automatically mounted when a session is created. If selected, the folder name must start with a dot ('.').
Folder name: The name of the folder (up to 64 characters).
Location: Select the NFS host where the folder will be created. If there are multiple hosts, choose one. An indicator will show if there is enough available space.
Type: Determines the type of folder to be created. It can be set as User or Project. The User folder is a folder that users can create and use alone and the Project folder is a folder created by admin and shared by users in the project.
Project: Shown only when you select project type. Designates the project to which the folder belongs when creating a new project folder. Project folders must belong to a project. However, it does not play any role when creating a user folder.
Permission: Set permission of a project folder for project members. If this is set to "Read-Only", project members cannot write to this folder inside their compute session.
Cloneable: Shown only when you select usage model to "Model". Select whether the vfolder you are creating should be cloneable.

The folders created here can be mounted when creating a compute session. Folders are mounted under the user's default working directory, /home/work/, and the file stored in the mounted directory will not be deleted when the compute session is terminated. (If you delete the folder, the file will also be deleted.)

Explore folder

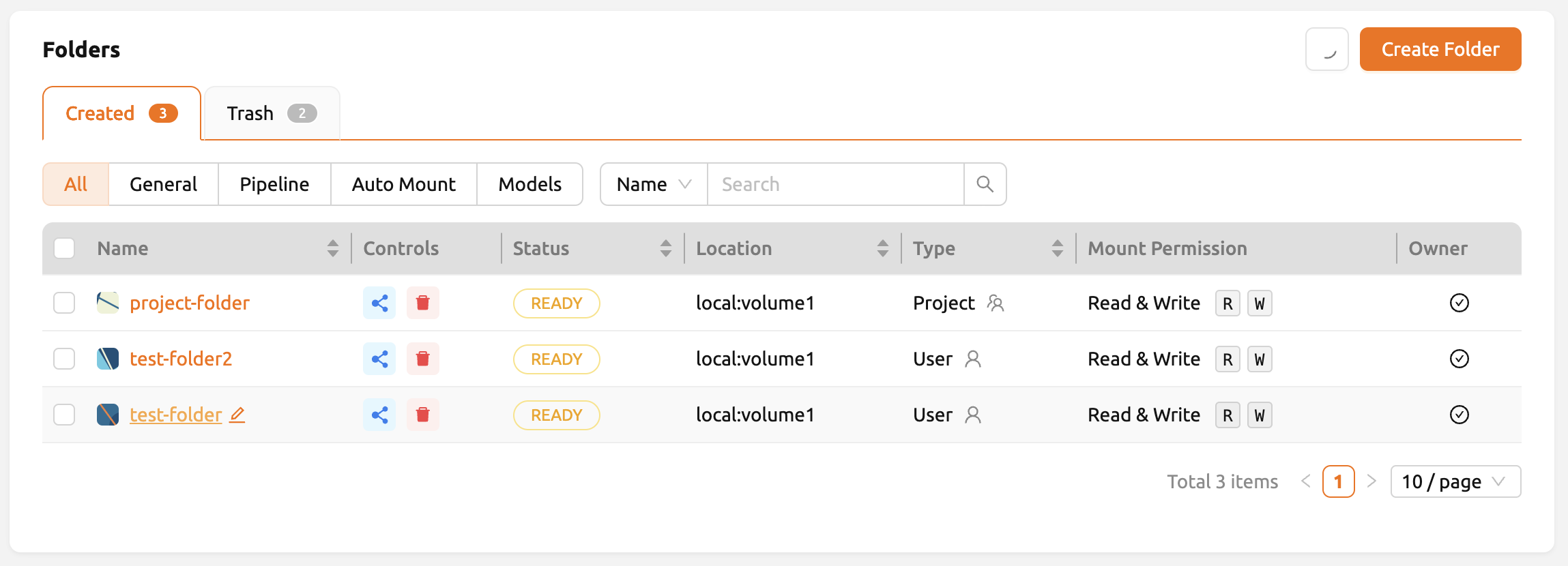

Click the folder name to open a file explorer and view the contents of the folder.

You can see that directories and files inside the folder will be listed, if exists. Click a directory name in the Name column to move to the directory. You can click the download button or delete button in the Actions column to download it or delete it entirely from the directory. You can rename a file/directory as well. For more detailed file operations, you can mount this folder when creating a compute session, and then use a service like Terminal or Jupyter Notebook to do it.

You can create a new directory on the current path with the 'Create' button (in the folder explorer), or upload a local file or folder with the 'Upload' button. All of these file operations can also be performed using the above-described method of mounting folders into a compute session.

The maximum length of file or directory inside a folder may depends on the host file system. But, it usually cannot exceed 255 characters.

Note

To ensure smooth performance, the screen limits the maximum number of files that can be displayed when a directory contains an excessive number of files. If a folder contains a large number of files, some may not be shown on the screen. In such cases, please use the terminal or other applications to view all files in the directory.

Rename folder

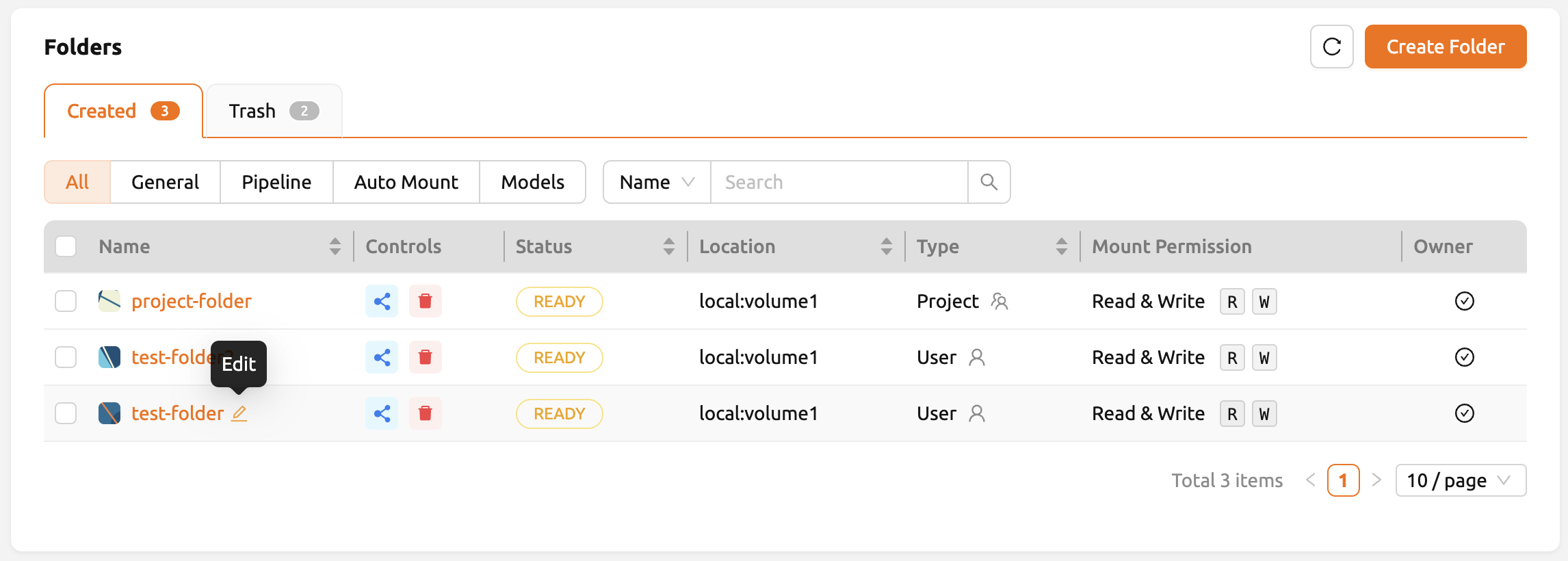

If you have permission to rename the storage folder, you can rename it by clicking the edit button.

Delete folder

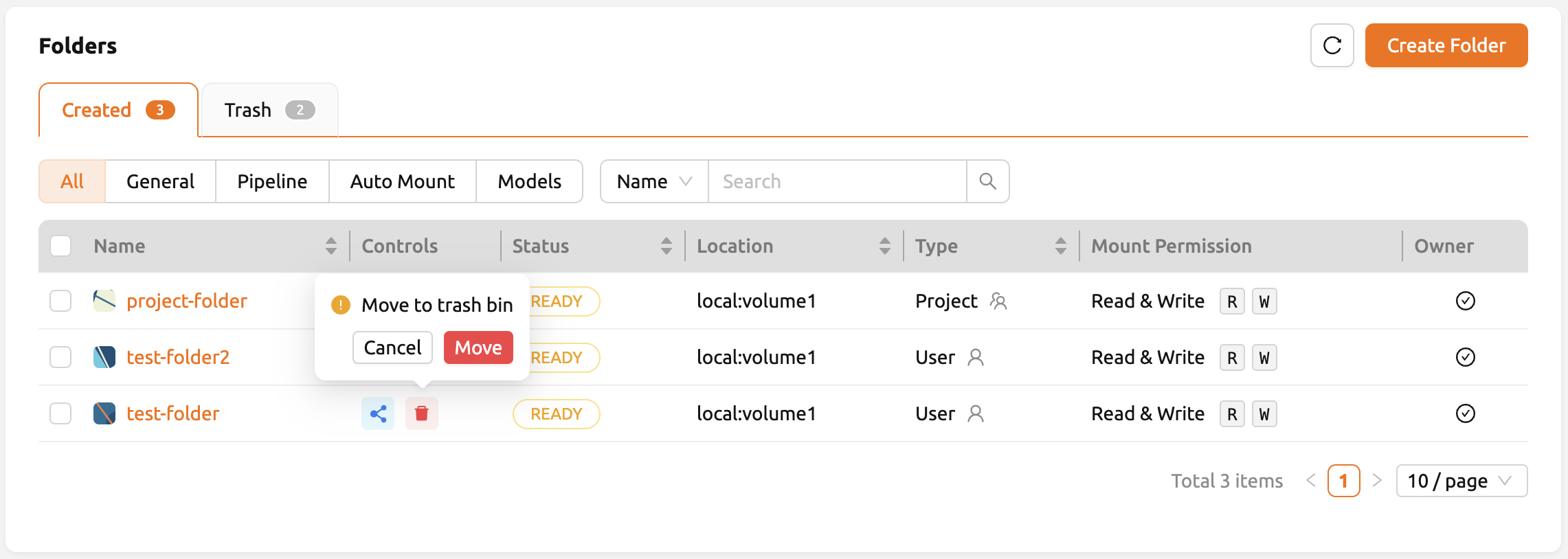

If you have permission to delete the storage folder, you can send the folder to the 'Trash' tab by clicking the 'trash bin' button. When you move a folder to the Trash tab, it is marked as delete-pending.

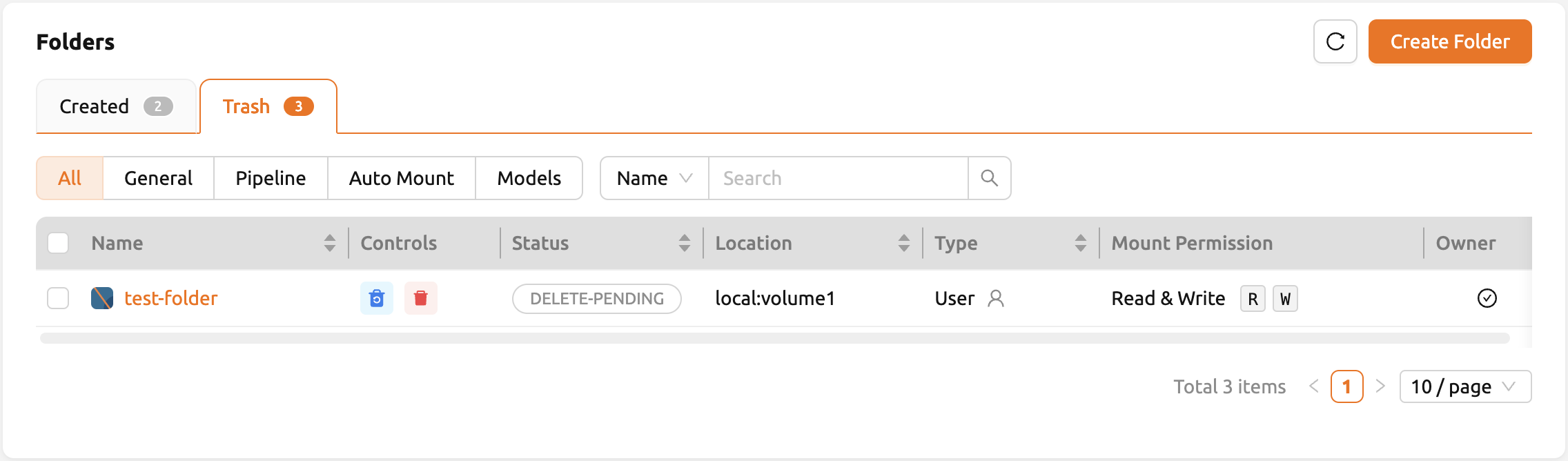

In this status, you can restore the folder by clicking restore button in Control column. If you want to permanently delete the folder, please click 'trash bin' button in the same column.

A confirmation modal will pop up with an input field saying Type folder name to delete. Make sure you type the exact folder name correctly into the field, and click the red 'DELETE FOREVER' button to permanently delete the folder.

Using FileBrowser

Backend.AI supports FileBrowser from version 20.09. FileBrowser is a program that helps you manage files on a remote server through a web browser. This is especially useful when uploading a directory from the user's local machine.

Currently, Backend.AI provides a FileBrowser as an application of a compute session. Therefore, the following conditions are required to launch it.

User can create at least one compute session.
User can allocated at least 1 core of CPU and 512 MB of memory.
Image that supports FileBrowser must be installed.

You can access FileBrowser in two ways.

Execute FileBrowser from file explorer dialog of a data folder.
Launch a compute session directly from a FileBrowser image on Sessions page.

Execute FileBrowser from folder explorer dialog

Go to the Data page and open the file explorer dialog of target data folder. Click the folder name to open the file explorer.

Click 'Execute filebrowser' button in the upper-right corner of the explorer.

You can see the FileBrowser is opened in a new window. You can also see that the data folder you opened the explorer dialog becomes the root directory. From the FileBrowser window, you can freely upload, modify, and delete any directories and files.

When user clicks 'EXECUTE FILEBROWSER' button, Backend.AI automatically creates a dedicated compute session for the app. So, in the Sessions page, you should see FileBrowser compute session. It is user's responsibility to delete this compute session.

Note

If you accidentally close the FileBrowser window and want to reopen it, just go to Sessions page and click the FileBrowser application button of the FileBrowser compute session.

../_images/app_dialog_with_filebrowser.png

When you click 'EXECUTE FILEBROWSER' button again in the data folder explorer, a new compute session will be created and a total of two FileBrowser sessions will appear.

Create a compute session with FileBrowser image

You can directly create a compute session with FileBrowser supported images. You need to mount at least one or more data folders to access them. You can use FileBrowser without a problem even if you do not mount any data folder, but every uploaded/updated files will be lost after the session is terminated.

Note

The root directory of FileBrowser will be /home/work. Therefore, you can access any mounted data folders for the compute session.

Basic usage examples of FileBrowser

Here, we present some basic usage examples of FileBrowser in Backend.AI. Most of the FileBrowser operations are intuitive, but if you need more detailed guide, please refer to the FileBrowser documentation.

Upload local directory using FileBrowser

FileBrowser supports uploading one or more local directories while maintaining the tree structure. Click the upload button in the upper right corner of the window, and click Folder button. Then, local file explorer dialog will appear and you can select any directory you want to upload.

Note

If you try to upload a file to a read-only folder, FileBrowser will raise a server error.

Let's upload a directory with the following structure.

foo
+-- test
|   +-- test2.txt
+-- test.txt

After selecting foo directory, you can see the directory just uploaded successfully.

../_images/filebrowser_upload_finished.png

You can also upload local files and directories by drag and drop.

Move files or directories to another directory

Moving files or directories in data folder is also possible from FileBrowser. You can move files or directories by following steps below.

Select directories or files from FileBrowser.

Click the 'arrow' button in the upper right corner of FileBrowser

Select the destination

Click 'MOVE' button

You will see that moving operation is successfully finished.

../_images/moving_operation_in_filebrowser_finished.png

Note

FileBrowser is provided via application inside a compute session currently. We are planning to update FileBrowser so that it can run independently without creating a session.

Using SFTP Server

From 22.09, Backend.AI supports SSH / SFTP file upload from both desktop app and web-based WebUI. The SFTP server allows you to upload files quickly through reliable data streams.

Note

Depending on the system settings, running SFTP server from the file dialog may not be allowed.

Execute SFTP server from folder explorer dialog in Data page

Go to the Data page and open the file explorer dialog of target data folder. Click the folder button or the folder name to open the file explorer.

Click 'Run SFTP server' button in the upper-right corner of the explorer.

You can see the SSH / SFTP connection dialog. And a new SFTP session will be created automatically. (This session will not affect resource occupancy.)

For the connection, click 'Download SSH Key' button to download the SSH private key (id_container). Also, remember the host and port number. Then, you can copy your files to the session using the Connection Example code written in the dialog, or referring to the following guide: link. To preserve the files, you need to transfer the files to the data folder. Also, the session will be terminated when there is no transfer for some time.

Note

If you upload your SSH keypair, the id_container will be set with your own SSH private key. So, you don't need to download it every time you want to connect via SSH to your container. Please refer to managing user's SSH keypair.

Folder Categories

Pipeline folders

This tab shows the list of folders that are automatically created when executing a pipeline in FastTrack. When a pipeline is created, a new folder is created and mounted under /pipeline for each instance of work (computing session).

Automount folders

Data page has an Automount Folders tab. Click this tab to see a list of folders whose names prefixed with a dot (.). When you create a folder, if you specify a name that starts with a dot (.), it is added to the Automount Folders tab, not the Folders tab. Automount Folders are special folders that are automatically mounted in your home directory even if you do not mount them manually when creating a compute session. By using this feature, creating and using Storage folders such as .local, .linuxbrew, .pyenv, etc., you can configure a certain user packages or environments that do not change with different kinds of compute session.

For more detailed information on the usage of Automount folders, refer to examples of using automount folders.

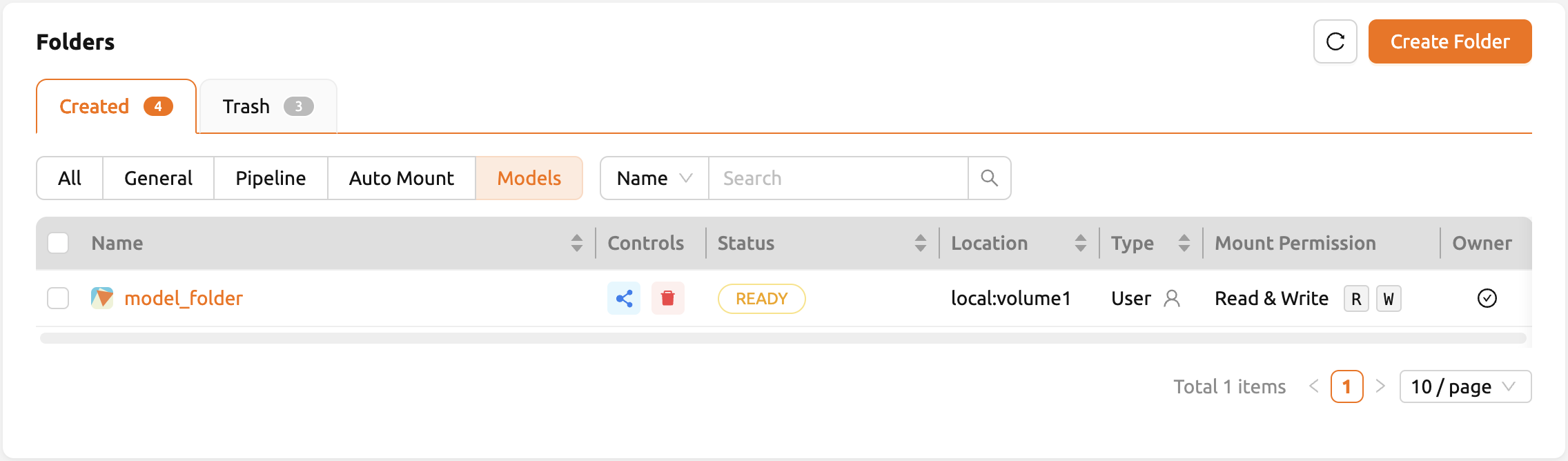

Models

'Models' The Models tab facilitates straightforward model serving. You can store the necessary data, including input data for model serving and training data, in the model folder.
